Short Description

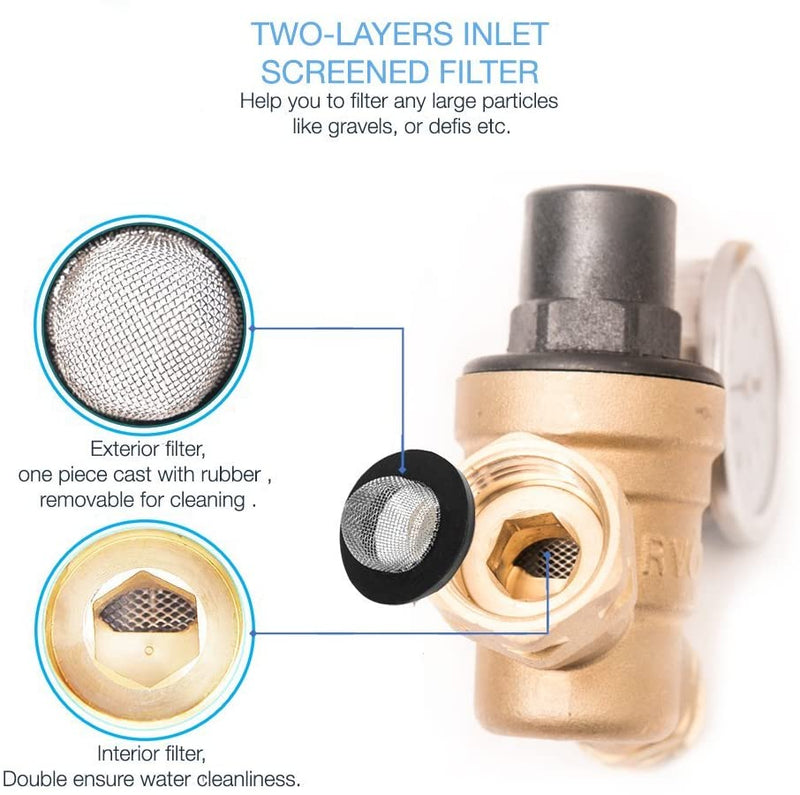

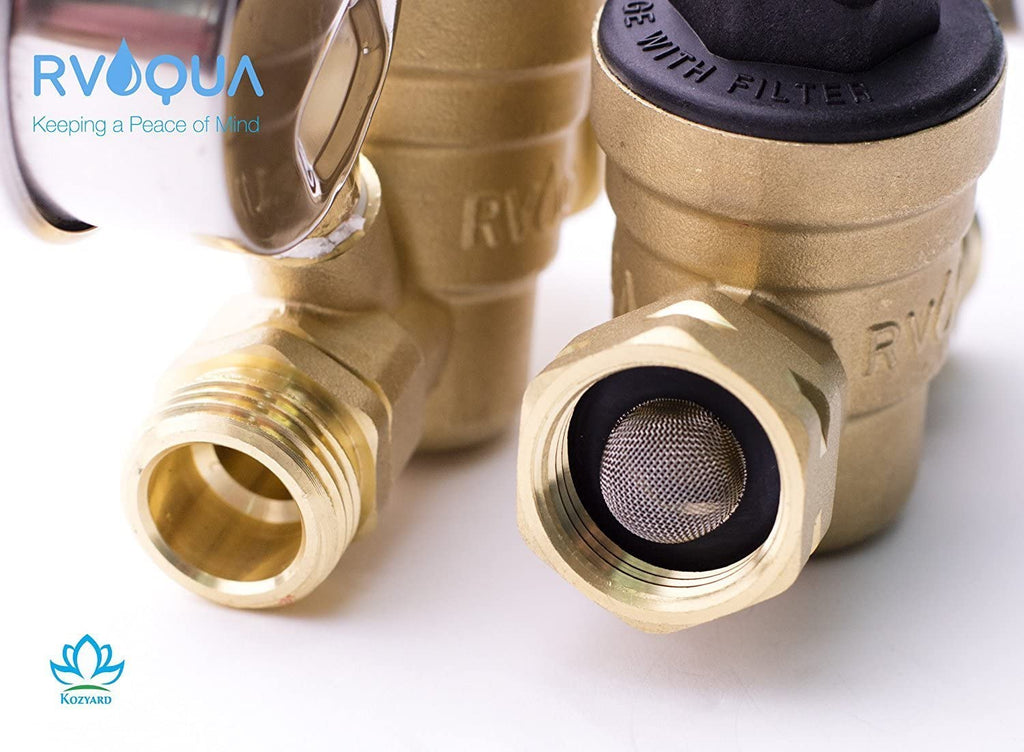

- Universal Fitment with Dual-layer Inlet Filter - Designed with 3/4" garden hose threads & NH threads, compatible with All US water sources. DUAL-LAYER inlet screened filter helps to filter particles like gravel, debris to prevent impurity blocking and valve body damage

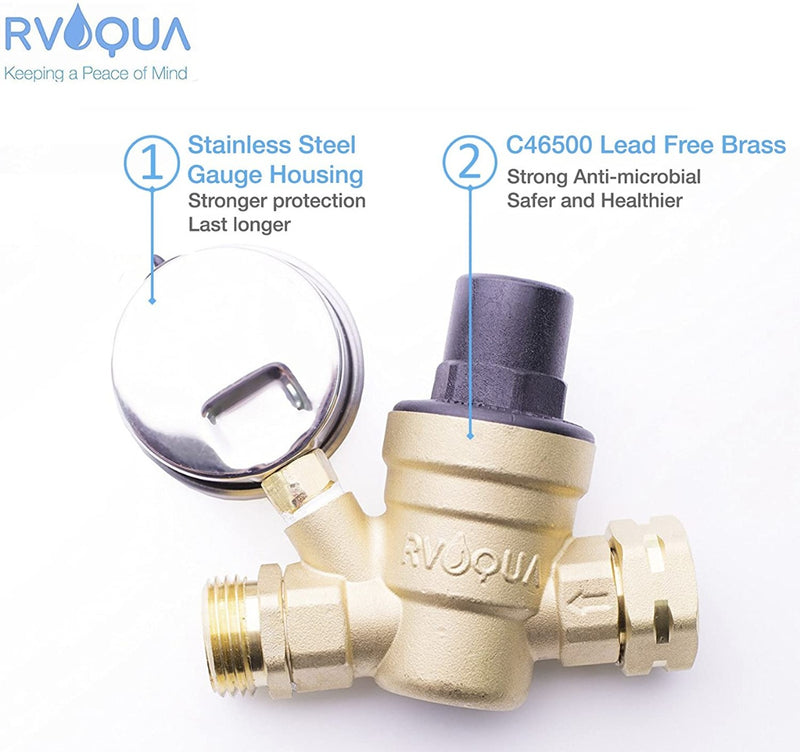

- Lead Free Brass, Safer and Healthier - Class C46500 LEAD-FREE BRASS treated by hot casting process technology. Tested to meet NSF lead-free requirements of less than 0.25%, which can inhibit bacterial growth Effectively. This regulator was modified to contain lowest amount of lead of any regulator on the market;
- Stainless Steel Gauge with Explosion-proof Plug - Better shock, dust and water leaking resistance than plastic shell gauge on the market. The build-in oil damps sudden pressure changes to damage the gauge. In case of water pressure exceeds the capacity, the Explosion-proof plug can prevent water spraying out from the end of the hose
- Adjust Water Pressure from 0-160PSI - Adjustable water pressure setting can easily adjust whatever water pressure you want (from 0-160PSI, Preset at 45PSI) by screw driver.

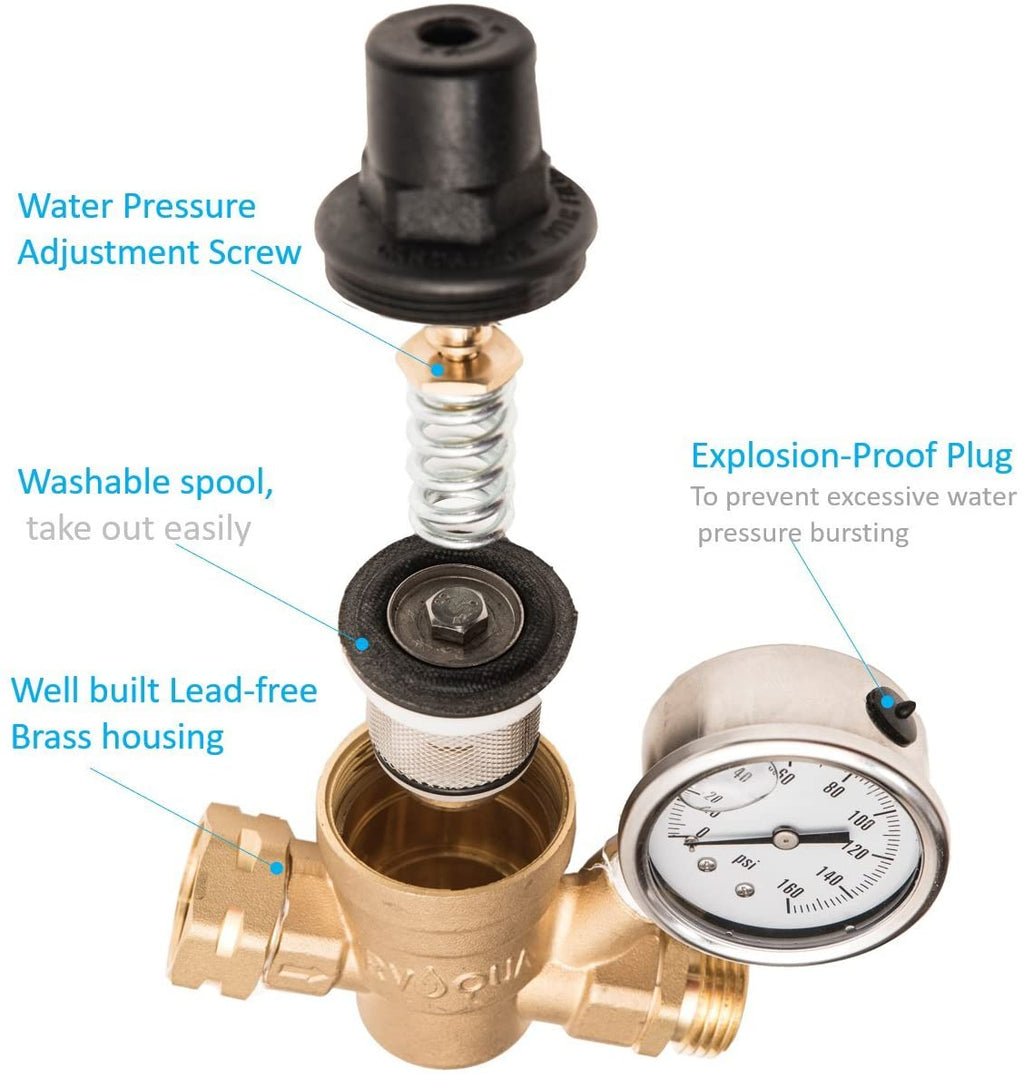

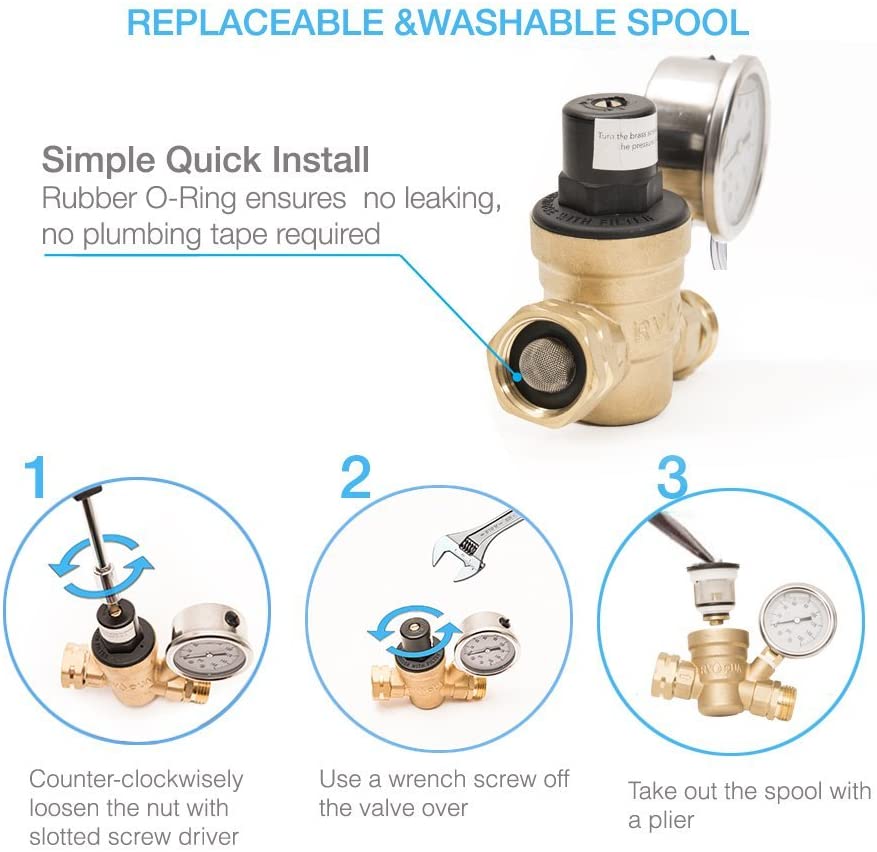

- Removable Valve Spool and Easy to Use - Compact size for easy to use, the removable valve spool for easily cleaning or replacement when needed by removing it. NOTE: In order to protect the sealing performance of the product, professional expert is highly recommended!
To enjoy your vacation time it is important to keep a peace of mind. Your campsite may have a different water source, or you might even be drinking from an unregulated mountain creek. We drive ourselves to prevent any damage to your expensive RV facility and water system so that you may rest well druing your trip. Our product, created by our co-founder who is also a passionate traveler, has gone through several iterations and upgrades in 2017. We do real field-testing in different locations to prove that this water regulator is a reliable, clean product ideal for your RV needs.
To enjoy your vacation time it is important to keep a peace of mind. Your campsite may have a different water source, or you might even be drinking from an unregulated mountain creek. We drive ourselves to prevent any damage to your expensive RV facility and water system so that you may rest well druing your trip. Our product, created by our co-founder who is also a passionate traveler, has gone through several iterations and upgrades in 2017. We do real field-testing in different locations to prove that this water regulator is a reliable, clean product ideal for your RV needs.
Operation Principle
The operation of the pressure-reducing valve is based on the balance between two opposing forces:
1. The thrust of the spring to open the flow passage cross section.
2. The thrust of the diaphragm to close the flow passage cross section.
Operation with water flow
When opening the draw-off outlet, the force of the spring prevails over that of the diaphragm. The obturator moves downwards, thereby opening the valve to the flow of water.
The greater the demand for water, the lower the pressure under the diaphragm. This results in a greater flow of water through the passage cross section.
Operation without water flow
When closing the draw-off outlet, the downstream pressure rises and pushes the diaphragm upwards. This closes off the passage cross-section from the flow of water and keeps the pressure constant at the setting value. The slightest difference in favor of the force exercised by the diaphragm over that of the spring causes the device to close.
Instructions & Specifications
Instructions
- Connect the female fitting on the adjustable water regulator to your water source’s hose bib.
- Connect the female fitting on the water hose to the male fitting on the adjustable water regulator.
- Turn on the water supply to flush the water regulator and hose for one minute. Turn off the water supply.
- Connect the hose to your RV’s water inlet, and then turn on the water supply.
- Turn on all RC fixtures flush out of the RV plumbing–this includes turning on showers, faucets and flushing toilets.
- Adjust the regulator screw (found at the top of the cap on the regulator) until it is set to the desired pressure reading. Turn off all RV fixtures before making adjustments to the regulator screw until you reach the desired pressure reading.

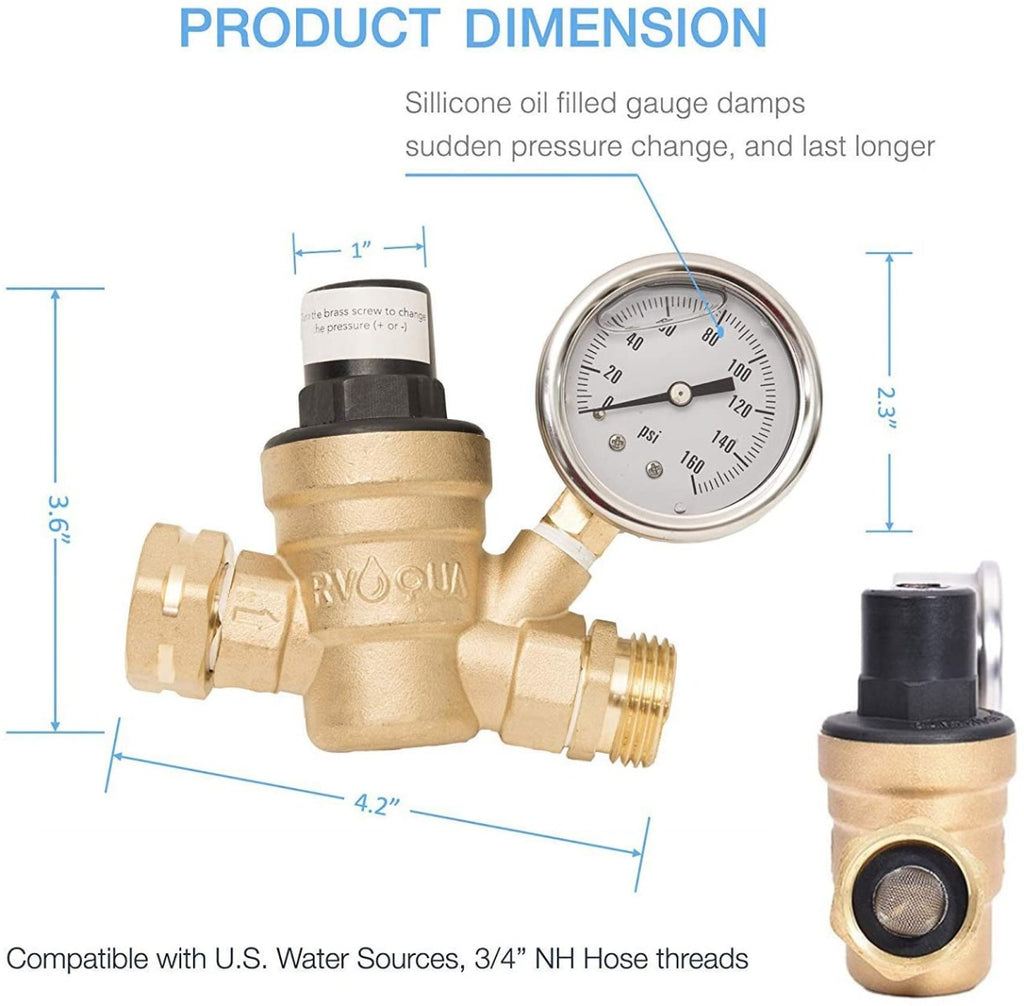

- Material: lead-free brass
- Applicable medium: water
- Connection: Thread
- Nominal diameter: DN20
- Structure: straight-through
- Pressure environment: atmospheric pressure
- Operating temperature: 14F ~ 200F
- Thread: 3/4" NH thread
- Drive: Manual
- Direction of flow: Unidirectional
- Maximum Pressure: 160 psi
Features:
- Built with durable and lead-free (Ava:0.1262%) brass, we modified this regulator to contain the lowest amount of lead compared to any other regulator on the market;
- Regulator gauge contains oil to reduce friction of internal components and greatly increases the life of the product;
- Compatible with all U.S. water sources, including 3/4" garden hose threads and NH threads;
- Easy to adjust the pressure into the RV at 45 to 55 psi;
- Factory setting:45 PSI,Min:14PSI,Max:160 PSI
Upgraded Pressure Gauge
Regulator gauge contains oil to reduce friction of internal components and greatly increases the life of the product.
Improved Threading
Our regulator is compatible with all U.S. water sources, including 3/4" garden hose threads and NH threads.
Lead Free
Built with durable and lead free (Ava:0.1262%) brass, this regulator was modified to contain lowest amount of lead of any regulator on the market;
